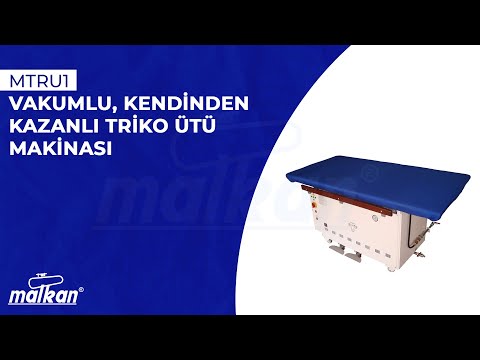

MTRU1 Vacuum, Self-Boiler Knitwear Ironing Machine
40 kg/h Steam | 30 kW Heating Element | 90×190 cm Plate | 0.55 kW Vacuum
Technical Specifications & Operating Principle
MTRU1 vacuum self-boiler knitwear ironing machine, with its steam chamber structure delivers intensive and fast steam. Two 1/2″ piston valves and a special steam spray system provide homogeneous distribution. The 90×190 cm plate is made of 3 mm perforated aluminum sheet. A 0.55 kW vacuum motor ensures powerful suction. Operates with central compressed air and 380V electricity.
🚀 Key Features
⚙️ Boiler Technical Data
Technical Parameter Table
| Parameter | Value |
|---|---|
| Steam Capacity | 40 kg/h |
| Steam Pressure | 4.5 bar |
| Heating Element Power | 30 kW |
| Plate Dimensions | 90 x 190 cm |
| Plate Material | 3 mm Perforated Aluminum Sheet |
| Steam Valves | 2 x 1/2″ Piston Valves |
| Vacuum Motor | 0.55 kW |
| Condensate Tank | 50 L Stainless Steel |
| Water Pump | 0.55 kW Automatic Feed |
| Safety System | Double Valve, Audible-Visual Alarm |
| Energy Sources | Central Compressed Air, 380V |
Frequently Asked Questions
What is the steam capacity of the MTRU1 vacuum self-boiler knitwear ironing machine?
It produces 40 kg/h steam at 4.5 bar operating pressure.
What are the plate dimensions and material?
90×190 cm, made of 3 mm perforated aluminum sheet.
Which energy sources does the MTRU1 require?
Central system compressed air and 380V electricity.
