MT2R PNEUMATIC, DOUBLE BOTTOM MOLD TRANSFER PRINTING PRESS 36X49 CM

₺0,00 ₺0,00

Product Video

Add to Offer Cart
Categories: , , , ,

Açıklama

MT2R PNEUMATIC, DOUBLE BOTTOM MOLD TRANSFER PRINTING PRESS 36X49 CM

2.5 kW Resistance | 36×49 cm Platen Area | Timed Press | Digital Thermostat

36×49 cm
Platen Area
2.5 kW
Resistance Power
2 Platens
Double Bottom System
220V
Single Phase

Technical Specifications & Operating Principle

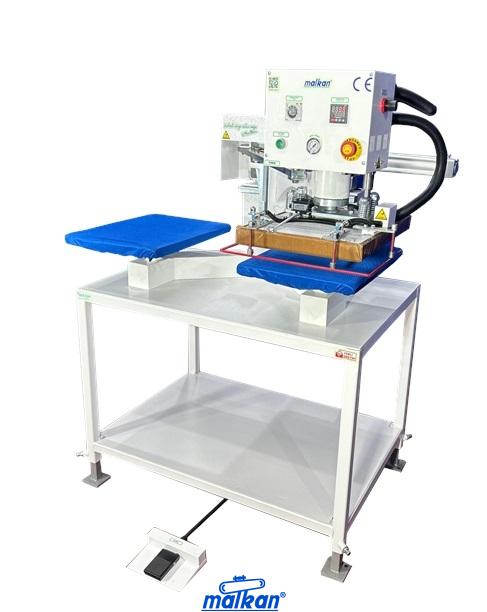

MT2R pneumatic double bottom platen transfer heat press 36×49 cm features two bottom platens with left-right automatic movable upper platen and vertical pressing. Timed press duration with automatic opening at cycle end. Resistance heated aluminum upper platen provides homogeneous heat distribution. Digital thermostat ensures precise temperature control. Safety frame for operator protection.

🚀 Key Features

✓
Double Bottom Platen: Left-right automatic movable upper platen.
✓
Timed Press Cycle: Automatic opening at cycle end.
✓
Resistance Heated Aluminum: Homogeneous heat distribution.
✓
Digital Thermostat: Precise temperature control.
✓
Safety Frame: Enhances operator protection.
✓
Pneumatic Pressure Adjustment: For all fabric types.
✓
Bottom Platen European Silicone: Flexible pressing surface.
✓
Upper Platen PTFE Coating: Non-stick and fireproof.
✓
Interchangeable Bottom Platen: Different sizes applicable.
✓
CE Certified: Meets safety standards.

⚙️ Pneumatic & Control Data

✓
Press System: Pneumatic, automatic movement.
✓
Control Type: Timed press + digital thermostat.
✓
Heater Type: Resistance (2.5 kW).
✓
Platen Movement: Left-right automatic upper platen.
✓
Bottom Platen Count: Two, interchangeable design.

Technical Parameter Table

Parameter Value
Platen Area 36×49 cm
Upper Platen Resistance Power 2.5 kW
Heating Technology Resistance, Aluminum Platen
Temperature Control Digital Thermostat
Bottom Platen Material European Silicone (2 pcs)
Upper Platen Coating PTFE Non-Stick Fabric
Press Type Pneumatic, Automatic Movement
Power Supply Single Phase 220V
Safety CE Certified, Safety Frame

Frequently Asked Questions

How does MT2R pneumatic double bottom platen transfer heat press 36×49 cm operate?

Timed press duration with automatic opening at cycle end.

What is the upper platen movement type?

Left-right automatic movable upper platen with vertical pressing.

What power supply does MT2R press require?

Single phase 220V electrical supply.
