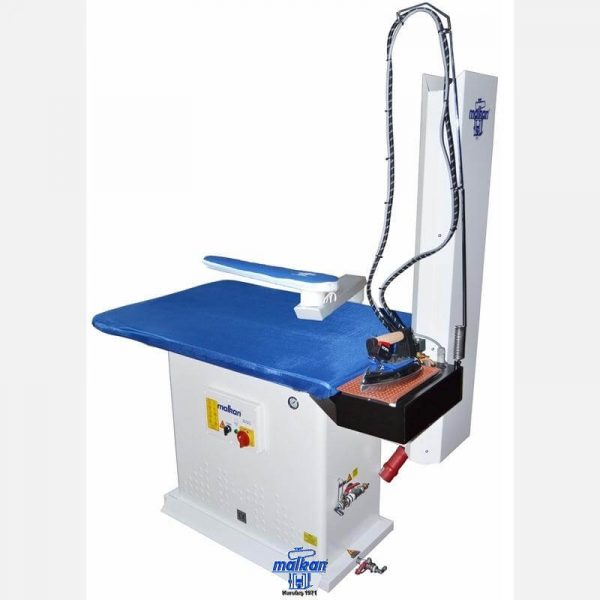

UP5021KC Ironing Table with Built-in Boiler and Vacuum, Without Resistance, One Hand Iron with Arm and Chimney
75×115 cm Area | 0.55 kW Vacuum | 6 kg/h Steam | 4 bar Pressure | 380V
Technical Specifications & Operating Principle
UP5021KC ironing table with built-in boiler and vacuum, without resistance, energy-saving high-vacuum narrow-type design. Custom manufactured 0.55 kW vacuum motor provides strong suction. Hand iron included; separate control switch for hand iron. Top plate perforated stepwise to direct vacuum to high-use areas. Top table and perforated sheet have corrosion-resistant cataphoresis coating. Aluminum blasted sheet + special cavity coating + fabric prevents surface wetting. Ironing area dimensions: 75×115 cm, height 90 cm. Arm attachment allows easy ironing of small parts. Air exhausted by vacuum is directed upward via chimney instead of floor. The UP5021KC ironing table with built-in boiler and vacuum, without resistance, one hand iron with arm and chimney features Cr-Ni stainless steel iron rest.
🪑 Ironing Table Features
⚙️ Boiler Technical Data
Technical Parameter Table
| Parameter | Value | |
|---|---|---|
| Ironing Area (W x D) | 75 x 115 cm (Height 90 cm) | |
| Boiler Material<\/td> | 2mm Cr-Ni Stainless Steel<\/td> | |
| Boiler Volume<\/td> | 10 Liters<\/td> | |
| Steam Capacity<\/td> | 6 kg/h (4 bar)<\/td> | |
| Boiler Heater Power<\/td> | 4.5 kW<\/td> | |
| Vacuum Motor / Pump Power<\/td> | 0.55 kW each<\/td> | |
| Water Tank Capacity<\/td> | 35 Liters (Plastic)<\/td> | |
| Ready Time<\/td> | Approximately 10 minutes<\/td> | |
| Operating Voltage<\/td> | 380V Three-Phase Industrial<\/td> |
Frequently Asked Questions
What is the steam capacity of the UP5021KC ironing table?
Produces 6 kg of steam per hour at 4 bar pressure.
How long does the device take to become operational?
Ready for operation in approximately 10 minutes.
What electrical connection is required?
Operates on industrial 380V three-phase power.
