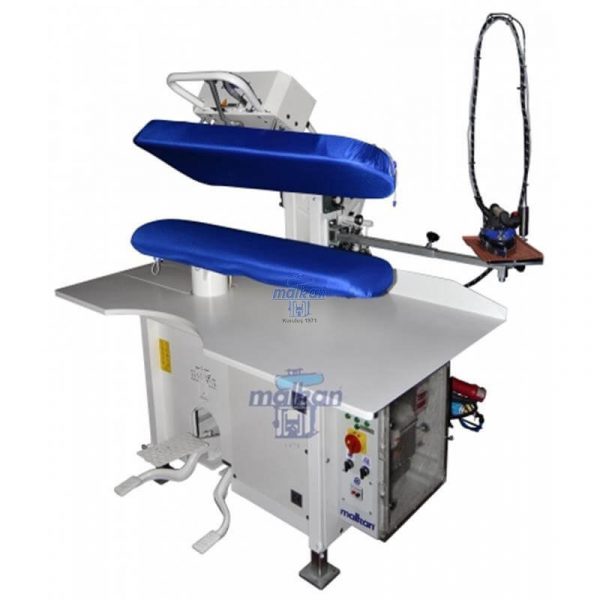

UP2VK MANUAL SYSTEM, SELF BOILER, VACUUM, LARGE SIZE, UNIVERSAL IRONING PRESS
400x250x1230 mm Mold | 15 kg/h Steam | 4 bar Pressure | 380V | CE
Technical Specifications & Operating Principle
UP2VK large size universal ironing press features manual system with self boiler and vacuum. CNC surface finishing ensures precise mold design. Lower buck provides vacuum, upper and lower bucks provide steam. Operates on industrial 380V electricity. Automatic water feed with pump, 35L plastic tank, 15 kg/h steam capacity, 4 bar pressure, 15 kW (2×7.5 kW) heater. Ready in approx. 35 minutes. Safety valve and audible/visual alarm. CE certified.
🚀 Key Features
⚙️ Technical Data
Technical Parameter Table
| Parameter | Value |
|---|---|
| Model | UP2VK |
| System | Manual, self boiler, vacuum |
| Mold Dimensions | 400x250x1230 mm |
| Steam Capacity | 15 kg/h |
| Operating Pressure | 4 bar |
| Heater Power | 15 kW (2×7.5 kW) |
| Water Tank | 35 L plastic |
| Warm-up Time | Approx. 35 minutes |
| Supply Voltage | 380V industrial |
| Certification | CE standards |
Frequently Asked Questions
What is the steam capacity and pressure of UP2VK large size universal ironing press?
15 kg/h steam capacity, 4 bar operating pressure.
Which energy sources does it require?
380V industrial electricity.
What safety features are included?
Safety valve and audible/visual alarm system.
