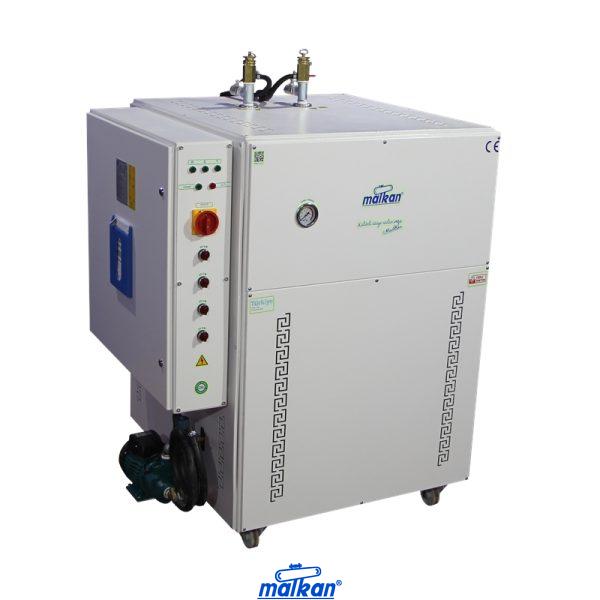

MEK80 FULL AUTOMATIC ELECTRICAL CENTRAL SYSTEM STEAM GENERATOR 80 KW
108 kg/h Steam | 4 Bar Pressure | 90 L Cr-Ni Condensate Tank | 380V
Technical Specifications & Operating Principle
MEK80 central system steam generator features full automatic electric design. Operates on industrial 380V electricity. Double safety valve and audible/visual alarm ensure 100% safety. Resistors engage in stages according to steam demand. Pump system provides automatic water supply. Includes 90 L Cr-Ni stainless steel condensate tank. Wheels for easy mobility. Ready in approximately 30 minutes. Steam pipe is steel.
🚀 Key Features
⚙️ Technical Data
Technical Parameter Table
| Parameter | Value |
|---|---|
| Model | MEK80 |
| Supply Voltage | 380V Industrial |
| Total Heater Power | 80 kW (8×10 kW) |
| Steam Capacity | 108 kg/h |
| Operating Pressure | 4 bar |
| Condensate Tank | 90 L Cr-Ni Stainless Steel |
| Heat-up Time | Approx. 30 minutes |
| Mobility | Wheeled |
Important Warning
This machine must use clean water free from scale and deposits. With the time-adjustable self-cleaning feature of our fully automatic SYC water softener, you can ensure high efficiency and long service life for your steam boiler and connected equipment. Request the addition of the SYC model in your quotation from your sales representative.
Frequently Asked Questions
What is the steam capacity of the MEK80 central system steam generator?
108 kg/h steam, operating pressure 4 bar.
Which energy source does it require?
380V industrial electricity.
What is the condensate tank capacity?
90 L Cr-Ni stainless steel tank included.
