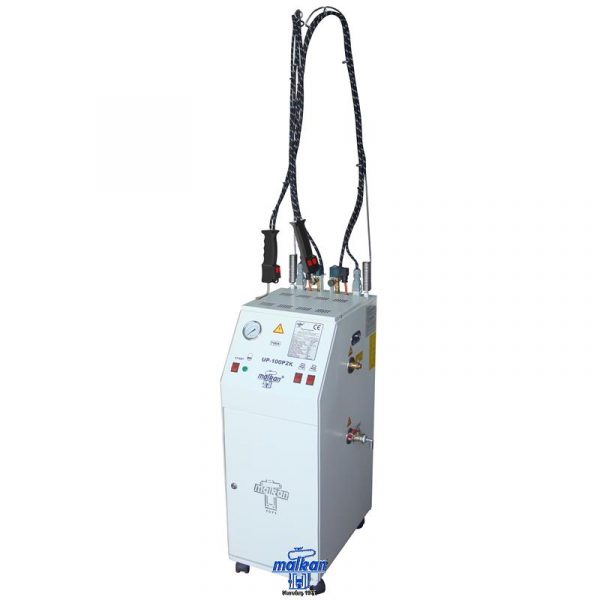

UP100P2K FULL AUTOMATIC STEAM GENERATOR WITH TWO PISTOLS
10L Cr-Ni Boiler | 4.5 Bar | 12 kg/h Steam | 9 kW Heater | 2 Pistols
Technical Specifications & Operating Principle
UP100P2K full automatic steam generator with two pistols for fur is used to raise flattened fur hairs with steam. Includes 2 electric steam pistols. 2mm Cr-Ni stainless steel 10L boiler. Double safety valve, double pressure switch, thermal fuse, audible and visual alarm. 2 adjustable steam valves. Float level control, automatic water feed with 0.55 kW pump, 35L plastic water tank with pump protection. Upper and lower drainage system (safety equipped). Ready in approx. 5 minutes, wheeled mobility. CE certified. Operates on 380V three-phase or 220V single-phase electricity.
🚀 Key Features
⚙️ Technical Data
Technical Parameter Table
| Parameter | Value |
|---|---|
| Model | UP100P2K |
| Boiler Material | 2mm Cr-Ni Stainless Steel |
| Boiler Volume | 10 Liters |
| Steam Pressure | 4.5 bar |
| Steam Capacity | 12 kg/h |
| Heater Power | 9 kW (2×4.5 kW) |
| Water Tank | 35L Plastic |
| Water Pump Power | 0.55 kW |
| Number of Pistols | 2 (electric, adjustable flow) |
| Warm-up Time | Approx. 5 minutes |
| Supply Voltage | 380V three-phase / 220V single-phase |
Important Notice
Clean water free from lime and sediment must be used in this machine. With the timed self-cleaning feature of our SYC Full Automatic water softening device, you can ensure high efficiency and long-lasting operation of your steam boiler and connected equipment. Request your sales representative to add the SYC model to your offer.
Frequently Asked Questions
How many pistols does the UP100P2K full automatic steam generator come with?
2 electric, adjustable flow steam pistols.
What are the steam pressure and capacity?
4.5 bar pressure, 12 kg/h steam capacity.
How soon is it ready for operation?
Ready in approximately 5 minutes.
