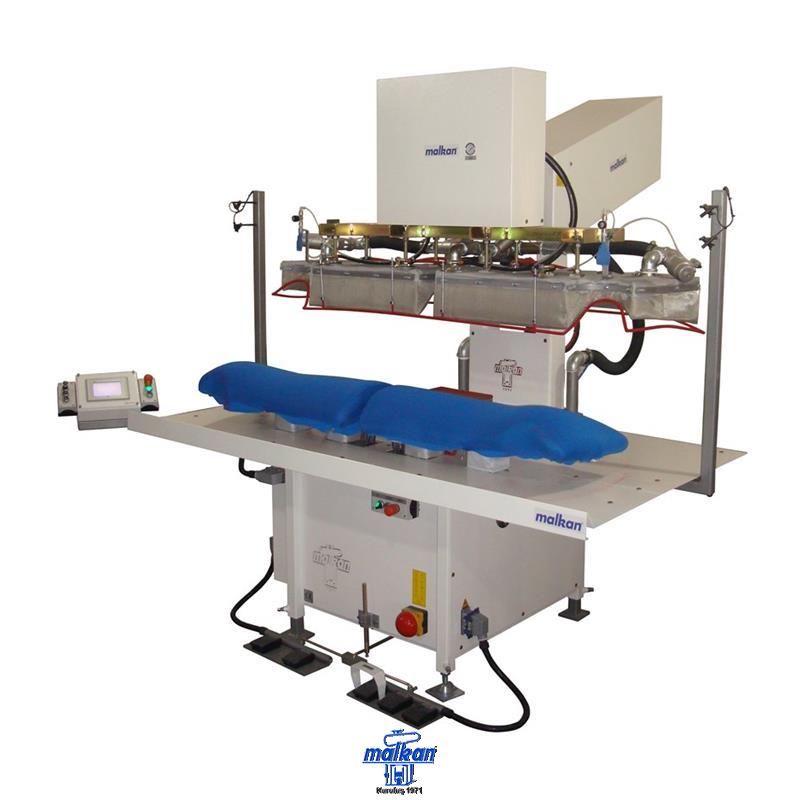

UPP1617KI PNEUMATIC, SLIDING SYSTEM, RIGHT – LEFT ONE UNIT JACKET BACK FORM IRONING PRESS


Yedek Parça Talep

UPP1617KI PNEUMATIC, SLIDING SYSTEM, RIGHT – LEFT ONE UNIT JACKET BACK FORM IRONING PRESS

Description

UPP1617KI PNEUMATIC, SLIDING SYSTEM, RIGHT – LEFT ONE UNIT JACKET BACK FORM IRONING PRESS

* It is a computer (PLC) controlled touch panel: 5.7″ TFT color LCD screen, 320x 240 pixel resolution, 1 pc.usb 2.0 input (programming feature on the desktop), animation application, CE,UL ,MIC certified, 140 different programs, 32 MB RAM, Turkish and English standard programming languages, Error warning diagnostic feature, Ability to manually control the functions of the machines on the screen, digitally adjusting the pressing pressure on the screen, digital distance control, program copying feature, ironed work counting feature, coating time warning.
* Gradual steam release, Gradual upper and lower vacuum (more or less)
* Energy saving is achieved with serpentine aluminum molds.
* Security system in CE norms, solid construction and ergonomic use.
* Both linear and vertical movement capability in the upper mold.
* Upper and lower molds are covered with European material.
* Precision mold design with advanced technology CNC surface treatment, anti-glare parts on the upper mold, perimeter (edge) vacuum system.
* Ability to do more and faster work with a single operator
* Placing the product properly with the laser marking beam
* Hand iron for retouching and ironing place with safety system.
