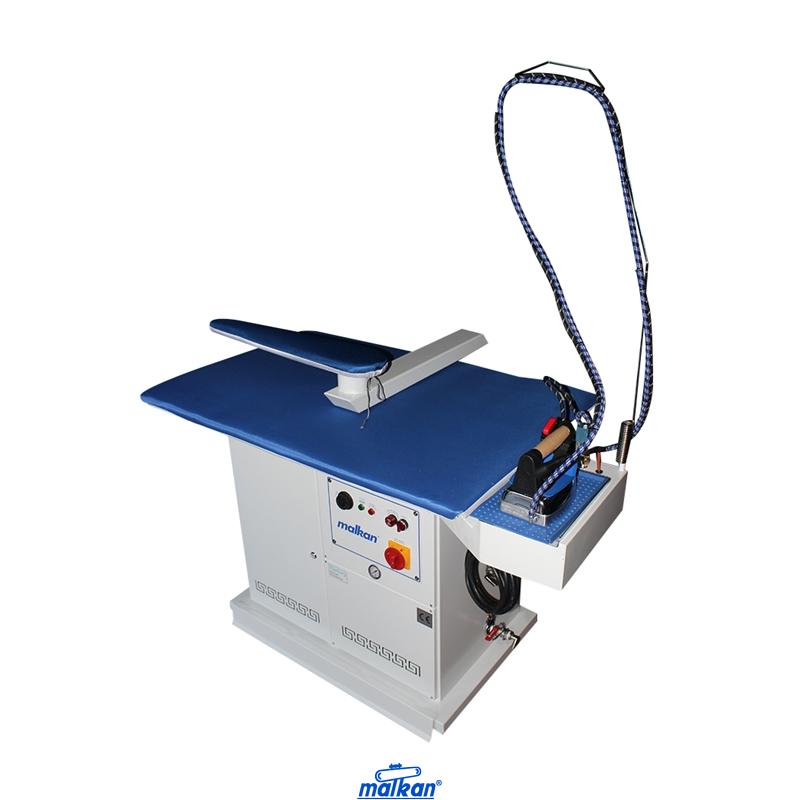

UP7021K SELF-CONTAINED BOILER, VACUUM, SLEEVE BOARD, SINGLE IRON IRONING TABLE
Sleeve Board | 4 Bar Pressure | 10 Lt Cr-Ni Boiler | 6 kg/h Steam
Technical Specifications & Operating Principle
UP7021K self-contained boiler, vacuum, sleeve board, single iron ironing table features a sleeve board and single iron design. It provides powerful vacuuming with a 0.55 kW vacuum motor. A hand iron is included and controlled via a separate control switch. It includes a 2mm Cr-Ni stainless steel 10 Lt steam boiler, double safety valve, and an audible/visual alarm system for overpressure. It offers a steam production capacity of 6 kg/h and a steam pressure of 4 bar. It features a 4.5 kW boiler heating element, a 35 Lt plastic water tank, and automatic water feeding via a 0.55 kW pump.
🚀 Key Features
⚙️ Boiler Technical Data
Technical Parameter Table
| Parameter | Value |
|---|---|
| Ironing Area | 75×115 cm |
| Height | 90 cm |
| Boiler Material | 2mm Cr-Ni Stainless Steel |
| Boiler Volume | 10 Liters |
| Steam Production Capacity | 6 kg/h |
| Steam Pressure | 4 bar |
| Boiler Heater Power | 4.5 kW |
| Top Table Heater | 2×1.5 kW (Thermostatic) |
| Water Tank | 35 Lt Plastic |
| Water Pump Power | 0.55 kW |
| Vacuum Motor Power | 0.55 kW |
| Warm-up Time | Approx. 10 minutes |
| Operating Voltage | 380V / Industrial Type |
Frequently Asked Questions
What is the steam pressure of the UP7021K self-contained boiler, vacuum, sleeve board, single iron ironing table?
Steam pressure is 4 bar, production capacity is 6 kg/h.
What are the ironing area dimensions of the UP7021K ironing table?
Ironing area is 75×115 cm, height is 90 cm.
What electrical connection does the UP7021K require?
It operates on industrial 380V electricity.
