Açıklama

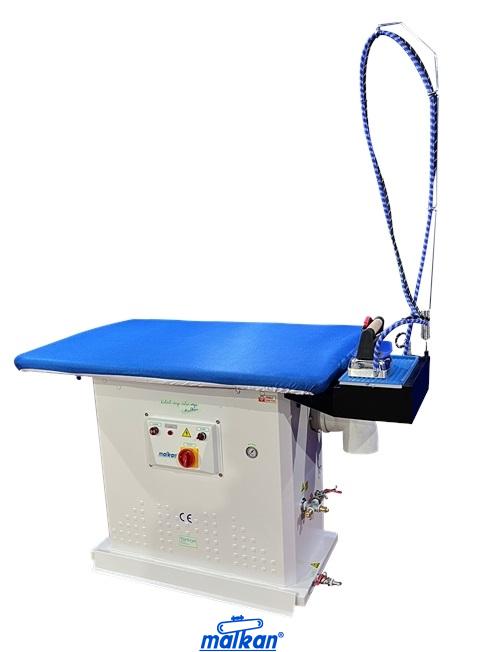

UP5021 Self-Contained Vacuum Ironing Table
Unheated | 4 Bar Pressure | 10 Lt Cr-Ni Boiler | 6 kg/h Steam
75×115 cm
Ironing Area
4 Bar
Steam Pressure
6 kg/h
Steam Capacity
10 Lt
Cr-Ni Boiler
Technical Specifications & Operating Principle
UP5021 self-contained vacuum ironing table features unheated energy-saving design with high vacuum. Includes 2mm Cr-Ni stainless steel 10 Lt steam boiler, double safety valve, and audible-visual alarm for overpressure. Provides 6 kg/h steam capacity and 4 bar steam pressure. Includes 4.5 kW boiler heater, 35 Lt plastic water tank, and 0.55 kW pump for automatic water feeding.
🚀 Key Features
✓
Unheated Design: Energy-saving operation.
✓
High Vacuum: 0.55 kW vacuum motor.
✓
Hand Iron Included: Separate control switch.
✓
Cataphoresis Coating: Rust-resistant table.
✓
Aluminum Perforated Sheet: Non-wetting surface.
✓
Cr-Ni Resting Area: Stainless iron placement.
✓
Roller Pedal Switch: Long-life mechanism.
✓
Wheeled Transport: Easy mobility.
✓
CE Certified: Safety standards.
⚙️ Boiler Technical Data
✓
Double Safety Valve: Overpressure protection.
✓
Audible-Visual Alarm: Activates at overpressure.
✓
Auto Water Feed: 35 Lt tank + 0.55 kW pump.
✓
Top/Bottom Drain: Safety equipped system.
✓
Pump Protection: Safety against dry running.
Technical Parameter Table
| Parameter | Value |
|---|---|
| Ironing Area | 75×115 cm |
| Height | 90 cm |
| Boiler Material | 2mm Cr-Ni Stainless Steel |
| Boiler Volume | 10 Liters |
| Steam Capacity | 6 kg/h |
| Steam Pressure | 4 bar |
| Boiler Heater Power | 4.5 kW |
| Table Heater Power | 2×1.5 kW (Thermostatic) |
| Water Tank | 35 Lt Plastic |
| Water Pump Power | 0.55 kW |
| Vacuum Motor Power | 0.55 kW |
| Ready Time | Approx. 10 minutes |
| Supply Voltage | 380V / Industrial Type |
Frequently Asked Questions
What is the steam pressure of UP5021 self-contained vacuum ironing table?
Steam pressure is 4 bar, capacity 6 kg/h.
What are the dimensions of UP5021 ironing table?
Ironing area 75×115 cm, height 90 cm.
What electrical connection does UP5021 require?
Operates on industrial 380V electricity.
