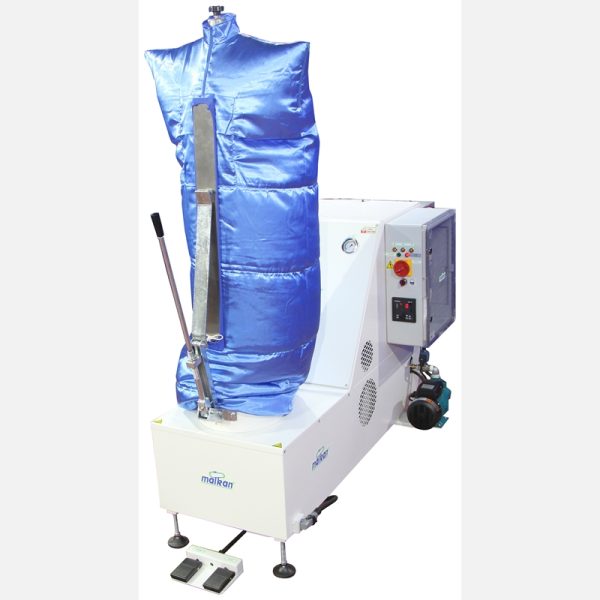

MSU1K Self-Boiled Mannequin Iron
15 kg/h Steam | 2×7.5 kW Heating | 4 bar Steam | 5 bar Air | 380V
Technical Specifications & Operating Principle
Self-boiled mannequin iron model MSU1K features self-contained boiler system for ironing coats, overcoats and jackets. Steam capacity is 15 kg/h with 4 bar operating steam pressure. Operates with 5 bar air pressure. Heating power is 2×7.5 kW. 35 L plastic water tank with pump system provides automatic water feeding. Ready for operation in approximately 25 minutes.
🚀 Key Features
⚙️ Technical Data
🔧 Construction & Safety
📊 Operating Parameters
Technical Parameter Table
| Parameter | Value |
|---|---|
| Model | MSU1K |
| Steam Capacity | 15 kg/h |
| Steam Pressure | 4 bar |
| Air Pressure | 5 bar |
| Heating Power | 2×7.5 kW |
| Water Tank | 35 L Plastic |
| Warm-up Time | Approximately 25 Minutes |
| Operating Voltage | 380V (Industrial Type) |
| Steam Boiler | Steel |
| Safety | CE Compliant |
Important Notice
This machine must be used with clean water free of limescale and sediment. Our SYC fully automatic water softener with timed self-cleaning feature ensures high efficiency and long service life for your steam boiler and connected equipment. Request your sales representative to include the SYC model in your quotation.
Frequently Asked Questions
Which garments does the MSU1K self-boiled mannequin iron handle?
Irons coats, overcoats and jackets.
What is the steam capacity of the machine?
15 kg/h steam production capacity.
What energy sources does this machine use?
380V electricity and 5 bar air.
