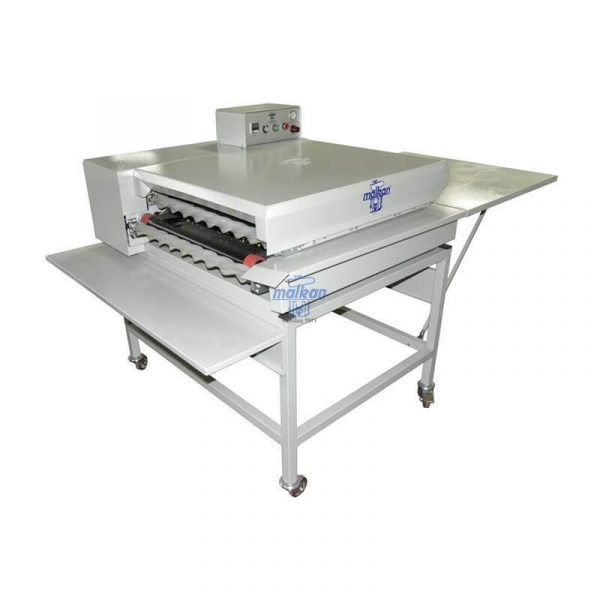

MKTP600M Pneumatic Desktop Model Cylinder System Finishing Press 600 mm
60 cm Belt Width | 380V / 5-6 Bar Air | Heated Top/Bottom Belts | Cooling System
Technical Specifications & Operating Principle
MKTP600M pneumatic desktop model cylinder system finishing press 600 mm operates on industrial 380V power. Requires 5-6 bar central system air. Belt width is 60 cm. Used for fusing interlining to fabric. Ideal for interlining bonding with strong pressure and homogeneous heat distribution. Top and bottom belts are heated with separate digital thermostat control. Belt speed is adjustable with reverse function for incorrect operation. Pneumatic and switch control prevents belt slippage. Pneumatic pressure can be adjusted for all fabric types. The MKTP600M pneumatic desktop model cylinder system finishing press 600 mm features a cooling system.
🖨️ Press & Belt Features
⚙️ Control & Safety Features
Technical Parameter Table
| Parameter | Value | |
|---|---|---|
| Model Type | Desktop Model | |
| Belt Width | 60 cm | |
| Operating Voltage | 380V Industrial | |
| Air Pressure | 5 – 6 Bar Central System | |
| Belt Heating | Top and Bottom (Digital Thermostat) | |
| Belt Speed | Adjustable + Reverse Function | |
| Pressure Control | Adjustable Pneumatic | |
| Cooling System | Available | |
| Application | Interlining Fusing |
Frequently Asked Questions
What is the belt width of the MKTP600M pneumatic desktop model cylinder system finishing press?
60 cm belt width capacity.
What energy sources are required?
380V power and 5-6 bar central air.
Are the top and bottom belts heated?
Yes, with separate digital thermostat control.
