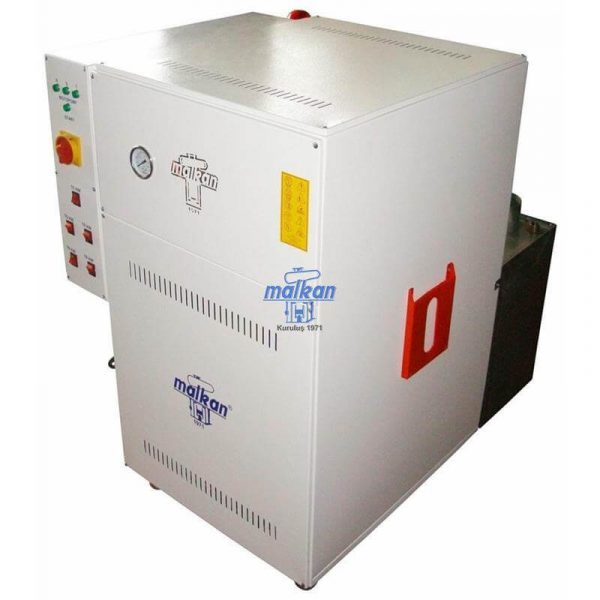

MEK50 FULL AUTOMATIC ELECTRICAL CENTRAL SYSTEM STEAM GENERATOR 50 KW
67.5 kg/h Steam | 4 Bar Pressure | 5×10 kW Heater | 90 Lt Condensate Tank
Technical Specifications & Operating Principle
MEK50 steam generator is a full automatic central system operating on 380V industrial electricity. 100% safe with double safety valve and audible-visual alarm at overpressure. Heaters can be staged according to steam demand. Automatic water feed with pump system. Includes 90 Lt Cr-Ni stainless steel condensate tank. Wheeled and ready in approx. 30 minutes.
🚀 Key Features
⚙️ Boiler Technical Data
Technical Parameter Table
| Parameter | Value |
|---|---|
| Steam Capacity | 67.5 kg/h |
| Working Pressure | 4 bar |
| Heater Power | 5×10 kW (50 kW) |
| Condensate Tank | 90 Lt Cr-Ni Stainless Steel |
| Operating Voltage | 380V / Three Phase |
| Ready Time | Approx. 30 minutes |
| Safety System | Double valve + audible-visual alarm |
| Water Feed | Automatic pump system |
Important Warning
This machine must use clean water free from limescale and sediment. With the time-adjustable self-cleaning feature of our SYC fully automatic water softener, you can ensure high efficiency and long life of your steam boiler and connected equipment. Request the inclusion of the SYC model in your quotation from your sales representative.
Frequently Asked Questions
What is the steam capacity of MEK50 steam generator?
67.5 kg/h steam production, working pressure 4 bar.
What electrical connection does the device require?
380V three-phase, total 50 kW heater power.
What material is the condensate tank made of?
90 Lt Cr-Ni stainless steel, no rust or stain.
