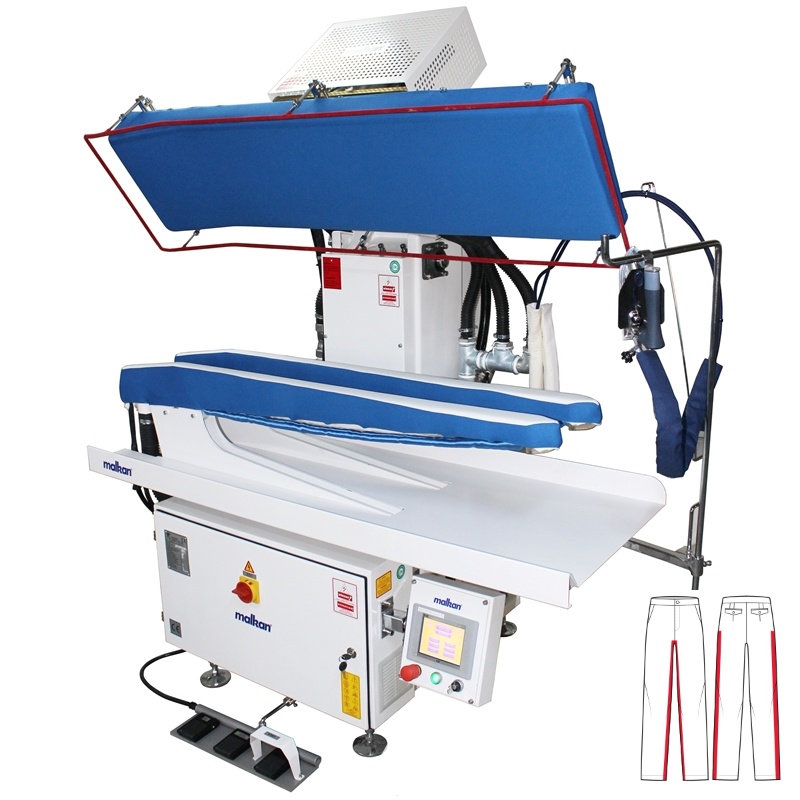

UPP22DI PNEUMATIC, SCISSORS SYSTEM, VERTICAL PRESSURE, DOUBLE, TROUSERS SIDE SEAM OPENING IRONING PRESS

₺0,00 ₺0,00

UPP22DI PNEUMATIC, SCISSORS SYSTEM, VERTICAL PRESSURE, DOUBLE, TROUSERS SIDE SEAM OPENING IRONING PRESS

Add to Offer Cart
Category:

Açıklama

UPP22DI PNEUMATIC, SCISSORS SYSTEM, VERTICAL PRESSURE, DOUBLE, TROUSERS SIDE SEAM OPENING IRONING PRESS

  • Angular and vertical movement capability in upper molds
  • PLC controlled, 7” color LCD touch screen
  • 800 x 480 Pixel resolution, 16.7M colors
  • Ethernet, RS232C, RS422/485 communication ports
  • 1 Usb 2.0 input (program receiving feature on the desktop)
  • Consistently high ironing quality with automatic coating calibration
  • 100+ different ironing programs and program copy feature
  • Turkish and English standard programming languages (12 different language options)
  • Fast breakdown finding with fault warning diagnostics and saving feature
  • Manual function control via touch screen
  • Digital press pressure setting; 0.1 bar sensitivity via screen
  • Digital distance control and spacing; 1mm sensitivity with magnetic ruler
  • Counting the number of ironed jobs and coating time warning
  • Program lock key (to prevent unauthorized use)
  • Safe operation and long coating life with upper molds with mechanical locking system
  • Gradual steam (more/less) in upper molds
  • Lower vacuum that can be activated sequentially in the lower molds
  • Vacuum and environmental vacuum system in upper molds
  • Pedal controlled and programmable bottom blowing
  • Pneumatic chain stretching system to ease seam opening
  • Daily production capacity increase with quick start option
  • Stroking ironing with pat-pat function
  • Hand iron for retouching and safety-equipped iron holders
  • Functional hand iron holding place; vacuum or blowing can be activated
  • Safety ring for operator safety
  • First class coating materials
  • Fast heating and energy saving with steam serpentine system and isolated molds
  • Accurate mold design with advanced technology CNC surface machining
  • Works with central steam, vacuum, air and 220 V electricity
  • MALKAN ONLINE remote access and monitoring system (optional)
  • Program list recall with barcode or QR code (optional)
