TSG1000 THERMOSTEAM Steam Boiler
1000 kg/h Steam Capacity | 6 Bar Pressure | 7″ Touchscreen PLC Control
Technical Specifications & Operating Principle

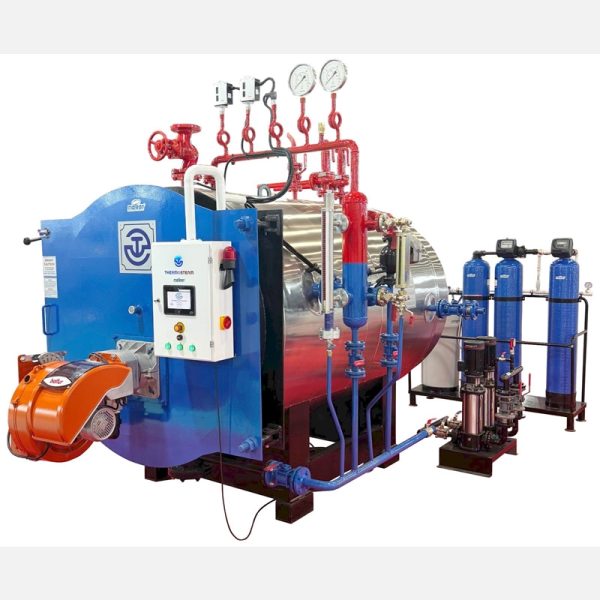

The high-performance TSG1000 THERMOSTEAM Steam Boiler is a reverse flame and smoke tube packaged system designed for heavy industrial needs. Thanks to its low water volume, it transitions to steam production in just 15-20 minutes from a cold start, providing a capacity of 1000 kg/h and a standard 6 bar operating pressure. Manufactured with P265GH quality boiler steel and seamless special steel drawn tubes, the product fully complies with TS EN 12953 norms. Operational controls, fault detection, and manual settings can be easily managed via the 7-inch color LCD touchscreen PLC. Produced in accordance with CE and ISO 9001 standards, this system operates integrally with its burner, high-pressure vertical type feed pump, and 1000-liter vertical condensate tank.
🚀 Key Features
⚙️ Operational Data
6 Bar Pressure
7″ PLC Screen
1000 L Condensate Tank
Technical Parameter Table
| Parameter | Value |
|---|---|
| Steam Production Capacity | 1000 kg/h |
| Operating Pressure | Standard 6 bar (Max. 20 bar) |
| Test Pressure | 9 bar |
| Startup Time | 15 – 20 minutes |
| Body Material | P265GH quality boiler steel |
| Condensate Tank Capacity | 1000 Liters (Vertical Cylindrical) |
| Control System | 7″ Color LCD Touchscreen PLC |
Frequently Asked Questions
Which fuel types does the TSG1000 THERMOSTEAM Steam Boiler operate on?
Equipped with a high-efficiency burner, it operates on natural gas, LPG, diesel, or fuel-oil; a dual fuel option is also available upon request.
How long does the system take to produce steam?
Thanks to its low water volume and high thermal capacity, it starts steam generation in just 15 to 20 minutes from a cold start.
What are the safety devices of the equipment?
Designed for full safety, the system includes mechanical and electronic low water level sensors, dual pressure switches, and two safety valves.
