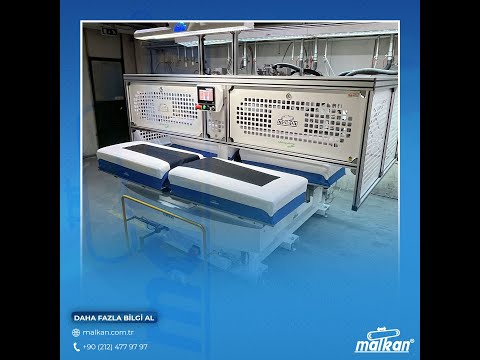

KAR19 Carousel System Double Legs Trousers Line Ironing Press
PLC Controlled | 4 Lower Molds | 180° Rotating Table | 100+ Programs
4
Lower Molds
180°
Rotating Table
PLC
Control System
7″
Touch Screen
Technical Specifications & Operating Principle
KAR19 carousel system double legs trousers line ironing press offers high production capacity with 4 lower molds and 180° rotating table. It is managed by a PLC controlled 7″ color LCD touch screen. Automatic padding calibration and 100+ different ironing programs ensure continuous high quality. Suitable for operation with 1 or 2 operators.
🚀 Key Features
✓
Carousel System: 4 lower molds, 180° rotating table.
✓
PLC Control: 7″ LCD touch screen.
✓
Steam Control: Upper high/low and medium steam.
✓
Vacuum Control: Lower high/low and medium vacuum.
✓
Proportional Valve: Steam and air control.
✓
Pat-Pat Function: Caress ironing.
✓
Cloth Stretching: Special system upper/lower molds.
✓
Powerful LED: High illumination.
✓
Safety Ring: Operator protection.
⚙️ Technical Data
✓
Display: 7″ LCD, 800×480, 16.7M colors.
✓
Ports: Ethernet, RS232C, RS422/485.
✓
USB 2.0: Program transfer and copy.
✓
Exhaust Vacuum: System on upper molds.
✓
Photo Sensor: Trousers detection and cloth control.
✓
Digital Settings: Pressure 0.1 bar, mm accuracy.
✓
Mold: Steam serpentine, insulated.
✓
Option: MALKAN ONLINE remote access.
Technical Parameter Table
| Parameter | Value |
|---|---|
| Control System | PLC, 7″ LCD Touch |
| Display Resolution | 800 x 480 Pixels, 16.7M Colors |
| Communication Ports | Ethernet, RS232C, RS422/485 |
| USB Input | 1x USB 2.0 |
| Ironing Programs | 100+ / Copy Function |
| Language Options | Turkish, English + 12 Languages |
| Pressure Setting | Digital, 0.1 bar Accuracy |
| Distance Control | Magnetic Scale, mm Accuracy |
| Operating Energy | Steam, Vacuum, Air, 220V |
Frequently Asked Questions
How many molds does the KAR19 carousel double legs trousers line ironing press have?
4 lower molds with 180° rotating table.
How many operators can work on the machine?
1 or 2 operators with high production capacity.
What safety systems does the KAR19 machine include?
Safety ring and mechanical lock system molds.
